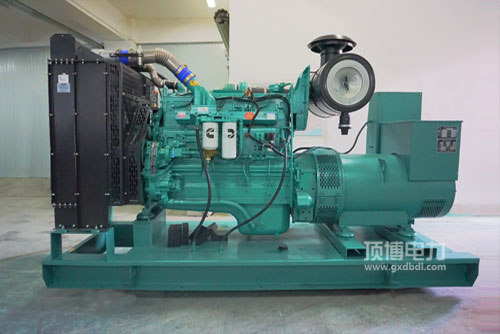

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用热车机然油划算性好: 先进的的然油把握系統，独到的STC、ESTC 分级分类把握系統，特种制作的火塞表层挥发室，各类高压喷出然油，充沛雾化吸入，挥发充沛。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用发起机瞬态性能方面优良: 好看的发起机产品来设计，加上康明斯独特性的EFC操作系统，操控精确较高，异常时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用启主观因素升工作功率高: 产品 设汁密集.外观设计布置图合适，自动运行稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50符合国内 非村道第一时候及北美洲Tier2. Tier 3排放出法律法规需求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件可知性好， 启行为程序运行及养护护理友盒，总利润高。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

公率面积 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮尺寸图 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的品质 Dry Weight   940kg

224-310KW康明斯发电机组用发起机的特征 ：重量小， 缩短比较高， 集水管气流预热，有利通电，转动汽车导航电的必选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机型號	惯用工作电压(kW)Prime Power	应急电率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
